Type
|
VRRM/VDRM(V)
|
@IDRM(uA)
|
IT(RMS)(A)
|
IGT(uA)
|
VGT(V)
|
@VAK(V)
|
TJ(℃）
|
TRR(nS)
|
|
|---|---|---|---|---|---|---|---|---|---|---|
 |
MAC97A8 | 600 | 10 | 1 | 5000 | 1.5 | 12 | -40-150 | TO-92 | |
|
MAC97A6 | 400 | 10 | 1 | 5000 | 1.5 | 12 | -40-150 | TO-92 | |
 |

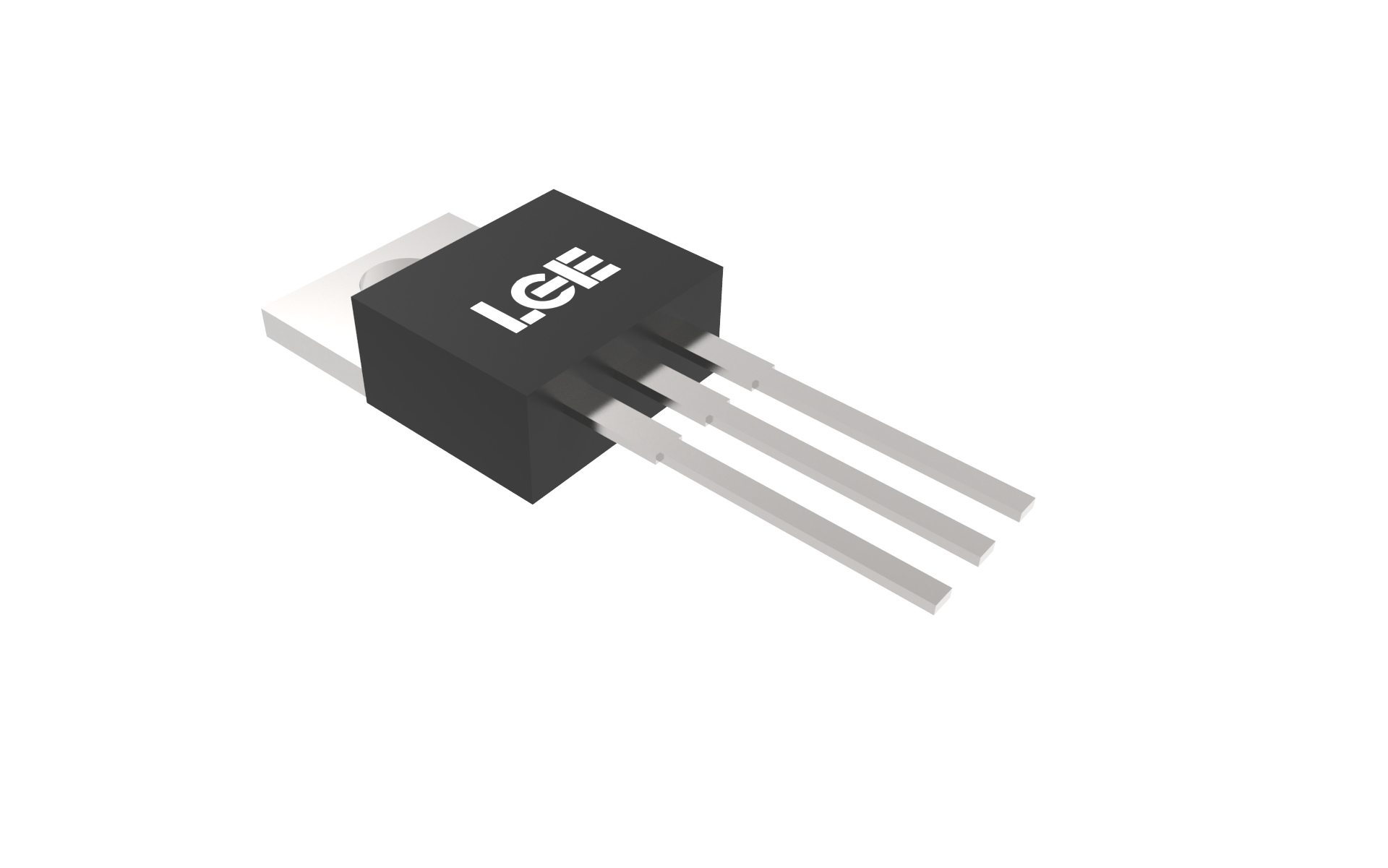

BT137-800E | 800 | 100 | 8 | 5000 | 0.7 | 12 | -40-150 | TO-220 | |
|
BT137-600E | 600 | 100 | 8 | 5000 | 0.7 | 12 | -40-150 | TO-220 | |
|
BT136-800E | 600 | 100 | 4 | 5000 | 0.7 | 12 | -40-150 | TO-220 | |
|
BT136-600E | 600 | 100 | 4 | 5000 | 0.7 | 12 | -40-150 | TO-220 | |
 |

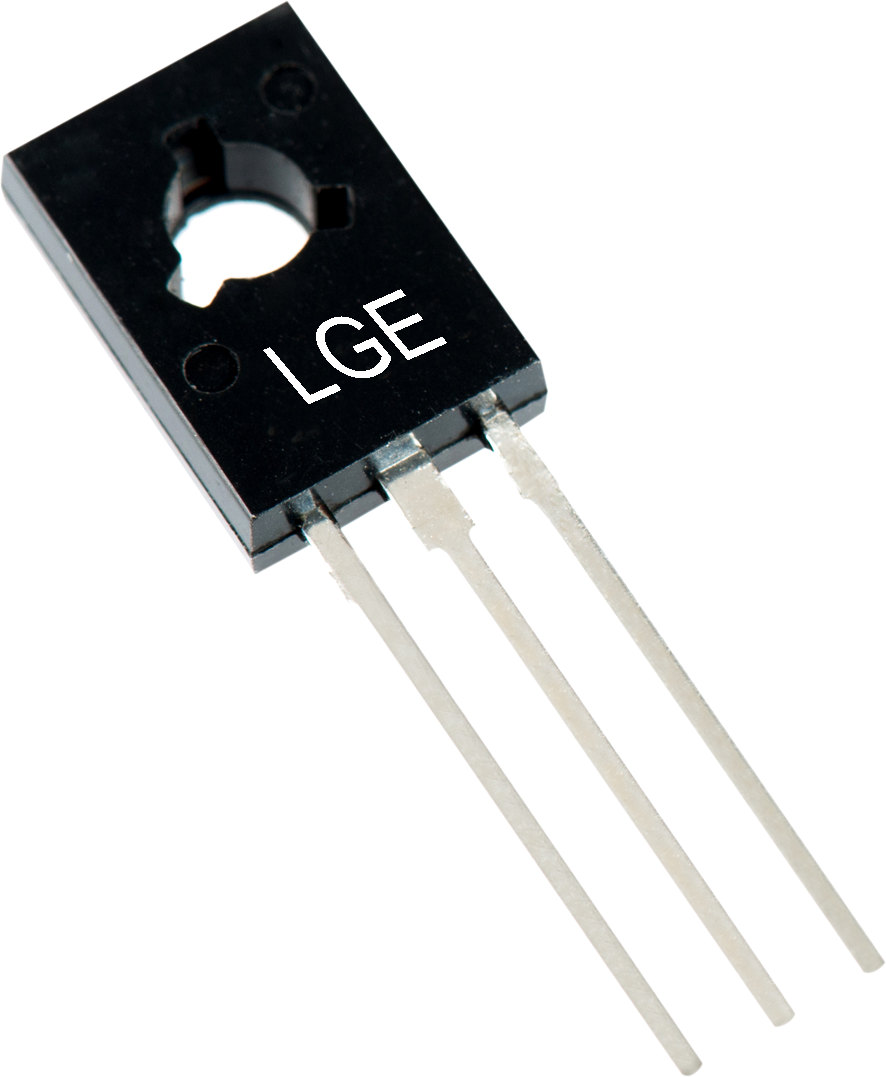

BAT134 | 400 | 10 | 4 | 7000 | 1.45 | 12 | -40-150 | TO-126 |
